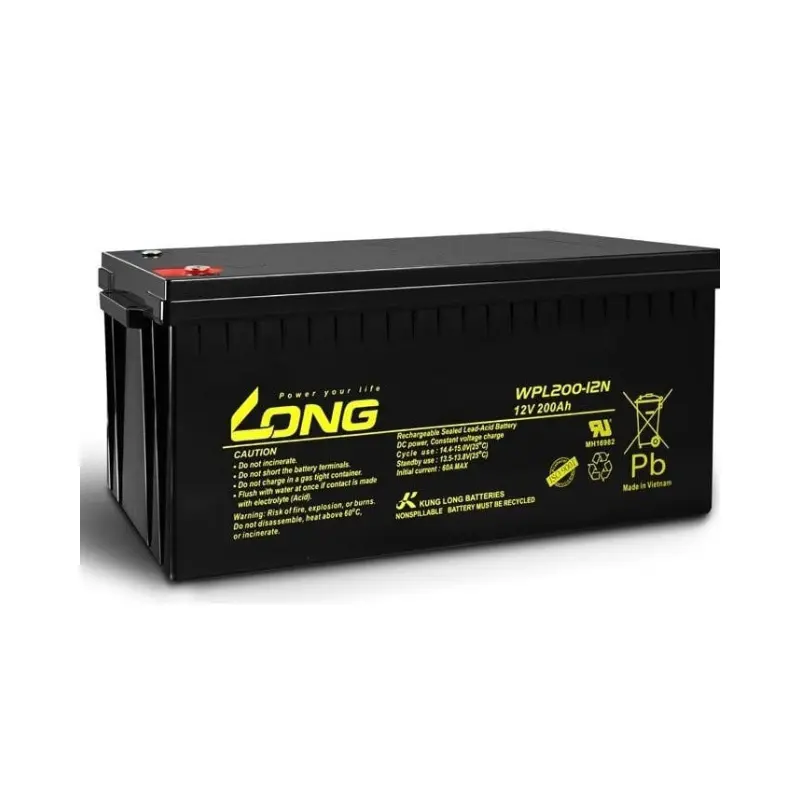

LONG WPL200-12N Battery, Rechargeable Sealed Lead Acid 12V200AH

LONG WPL200-12N Battery

Rechargeable Sealed Lead Acid 12V200AH

 Reliable 12V Battery Built for Heavy-Duty Use

The Long WPL200-12N is a powerful 12V 200Ah sealed lead-acid (SLA) battery engineered to deliver stable, dependable performance even in tough conditions. With its large capacity, strong discharge efficiency, and maintenance-free design, it is ideal for backup power systems, UPS units, solar energy setups, telecom equipment, and industrial power needs. It offers long service life, consistent voltage, and reliable operation across wide temperature ranges, making it a trusted choice for both professional and residential applications.

 High-Capacity Performance with Multiple Discharge Rates

This battery is designed to deliver maximum power output across different discharge cycles.

• 10-hour rate (20A to 10.80V): 200Ah
• 5-hour rate (34A to 10.20V): 170Ah
• 1-hour rate (120A to 9.60V): 120Ah

These discharge ratings allow the battery to support a wide range of devices—from low-draw systems that need long, stable runtime to high-power units that require intense bursts of current. With a maximum discharge current of 1600A for 5 seconds, the WPL200-12N can handle emergency startups and heavy surge loads without voltage drops.

 Durable Construction and Low Internal Resistance

The battery features a robust internal structure with an internal resistance of only 3mΩ, allowing efficient energy transfer and reduced performance loss. This ensures improved power output, lower heat generation, and higher overall efficiency.
Weighing 66.5 kg, the battery uses advanced lead-calcium alloy plates that maximize durability and extend service life. The casing is built from ABS UL94 HB material, with an optional UL94 V-0 flame-retardant upgrade for added safety in industrial environments.

 Optimized Charging for Long Life

The WPL200-12N supports efficient charging methods tailored for long-term use.

• Maximum charging current: 60A
• Float charging voltage: 13.5V – 13.8V
• Temperature compensation: -3.0mV/°C/cell

These specifications help maintain the battery’s health, minimize sulfation, and ensure stable charging in various climates. This makes the battery suitable for solar systems, standby power, and environments with fluctuating temperatures.

 Wide Operating Temperature Range

This battery is designed for environments that experience both high and low temperatures.

• Charge: -15°C to 40°C
• Discharge: -15°C to 50°C
• Storage: -15°C to 40°C

Thanks to its rugged build and stable chemical structure, the WPL200-12N performs reliably all year long—even during harsh winters or hot summer seasons.

Long Shelf Life and Excellent Charge Retention

When stored at 20°C, the battery maintains a high percentage of its charge:

• 1 month: 98%
• 3 months: 94%
• 6 months: 85%

This strong charge retention ensures the battery remains dependable during long storage periods, making it suitable for emergency backup systems, seasonal equipment, and long-term installations.

 Extended Service Life for Professional Use

The WPL200-12N is built for endurance. With an expected design life of 10–12 years (Eurobat classification), customers can count on long-term performance with minimal maintenance. This lifespan makes it a cost-effective investment for businesses and power-intensive setups that demand stable, uninterrupted energy.

 User-Friendly Terminal Design

This model comes equipped with F18 terminals (M8 bolt type).

• Recommended torque: 12 N-m
• Maximum torque: 15 N-m

These strong, corrosion-resistant terminals ensure secure connections, improved conductivity, and easy installation in various power systems. They support heavy cables and high current loads without risk of loosening or overheating.

Accurate Size for Easy System Integration

The Long WPL200-12N fits smoothly into battery cabinets, UPS frames, and solar system housings thanks to its standardized dimensions:

• Length: 522 ± 3 mm
• Width: 238 ± 3 mm
• Height: 219 ± 3 mm
• Total height (with terminals): 224 ± 3 mm

These precise measurements ensure compatibility with most industrial and commercial battery enclosures.

 Strong Performance Across Multiple End Voltages

The battery delivers powerful performance across different end voltages and discharge times. It provides high watt and amp outputs ranging from 10 minutes to 1200 minutes, allowing system designers to choose the best configuration for their power needs. Whether the load requires strong bursts of energy or long, sustained power, the WPL200-12N ensures consistent voltage and reliable output.

 Ideal for Multiple Applications

Thanks to its capacity, durability, and strong discharge performance, the WPL200-12N is a perfect choice for:

• UPS backup systems
• Solar energy banks
• Telecom towers
• Industrial equipment
• Medical devices
• Emergency lighting systems
• Power inverters
• Off-grid and backup installations

Its long life and steady performance make it one of the most versatile batteries in its category.
