Schneider SRVSPM1KIL Easy UPS 1 Ph On-Line, 1000VA, Tower, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, No Battery

Schneider SRVSPM1KIL Easy UPS 1 Ph On-Line, 1000VA, 230V, Tower

3x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, No Battery

Reliable Power Protection with Double-Conversion On-Line Technology

Schneider SRVSPM1KIL Easy UPS 1 Ph On-Line delivers consistent, reliable power through double-conversion on-line technology,

so ensuring clean and stable voltage for your sensitive equipment.

With 1000VA / 800W capacity, this tower-style UPS is designed for small-to-medium business networks, edge environments, and IT infrastructure.

Whether you’re protecting servers, storage, or networking hardware,

this pure sine wave UPS ensures maximum equipment uptime, even during unpredictable power conditions.

Energy Efficiency in ECO Mode

One of the standout features of Schneider ups power supply is its high operating efficiency, so reaching up to 88% at full load.

The integrated ECO mode allows the UPS to switch intelligently between battery and bypass power,

so helping to reduce energy consumption and operational costs without sacrificing protection.

This makes it ideal for environmentally conscious organizations looking to improve energy savings.

Schneider SRVSPM1KIL Easy UPS 1 Ph Expandable Runtime with External Battery Packs

This Schneider ups power supply model is designed to meet extended backup time requirements.

While it comes with no internal battery, it supports up to 4 external battery packs (model SRVS36BP-9A),

so allowing for longer runtime during power outages.

This flexibility makes it a scalable solution suitable for growing businesses that require continuous uptime for their critical applications.

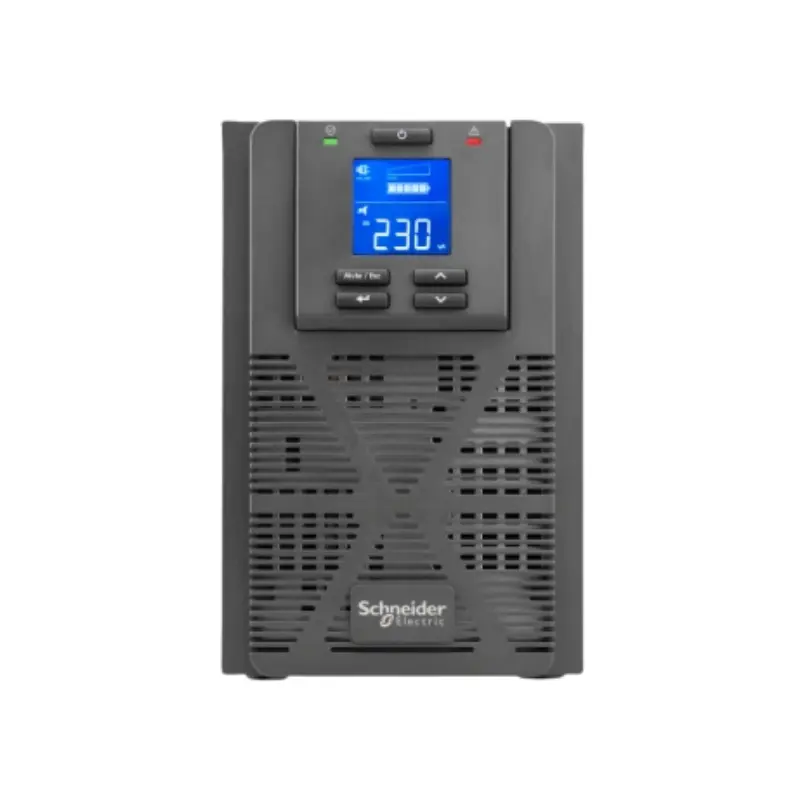

Intuitive LCD Display for Real-Time Monitoring

Schneider SRVSPM1KIL Easy UPS 1 Ph features a user-friendly multifunction LCD interface,

which displays real-time data such as input/output voltage, load level, battery status, and more.

This ensures easy monitoring and control of your UPS system without requiring specialized software,

so making it accessible even to non-technical users.

Schneider SRVSPM1KIL Easy UPS 1 Ph Smart Connectivity and Management Options

With an intelligent card slot, this Schneider UPS allows for enhanced monitoring and network integration capabilities.

You can easily manage the UPS remotely when equipped with an optional network management card.

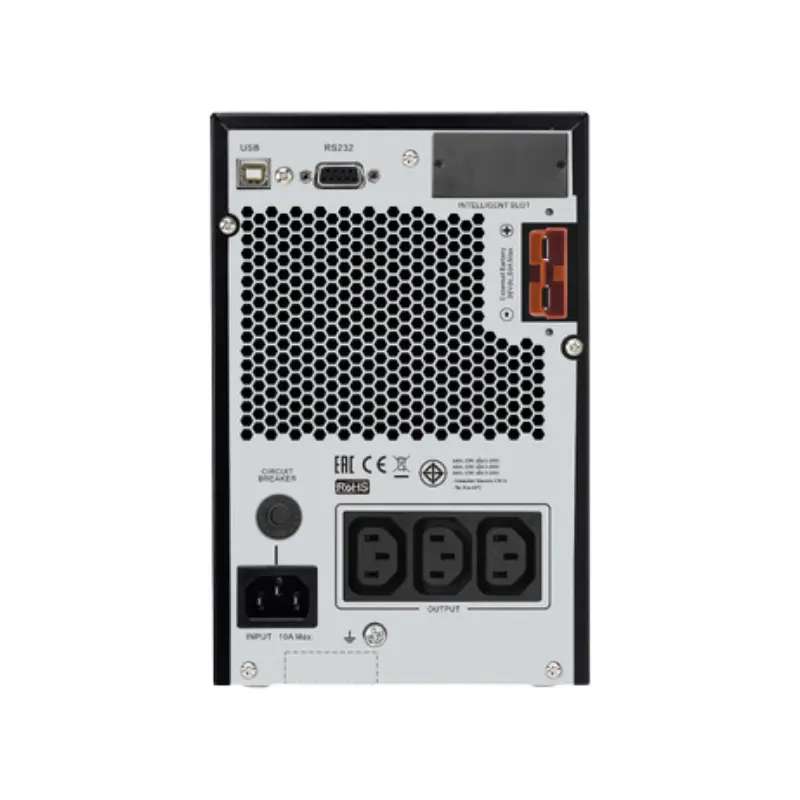

Additionally, it comes with a USB port and RS-232 interface, so giving you multiple connectivity options for local management.

Comprehensive Surge and Voltage Protection

SRVSPM1KIL ups system 1 Ph On-Line is equipped with a surge energy rating of 600 joules,

so offering solid protection against sudden spikes and voltage fluctuations.

It supports internal automatic and manual bypass,

so ensuring your devices remain powered even during UPS maintenance or overload events.

The wide input voltage range (110–285V half load and 160–280V full load) offers exceptional flexibility also protection under challenging electrical conditions.

Versatile Output and Connection Options

This model provides 3 IEC C13 output connections and accepts IEC C14 input, so making it suitable for a wide range of IT and networking devices.

Included in the package are two power cables (C13 to Schuko and C13 to C14), a USB cable, an RS-232 cable, and a battery cable,

so ensuring you’re ready to deploy it straight out of the box.

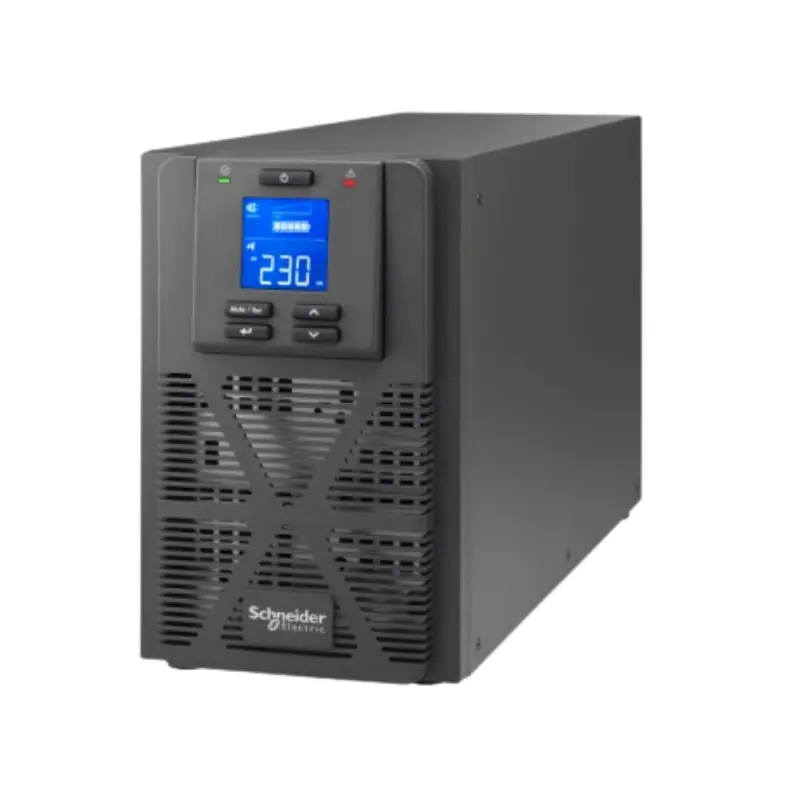

Schneider SRVSPM1KIL Easy UPS 1 Ph Compact, Lightweight, and Easy to Deploy

UPS system 1 Ph On-Line comes in a compact vertical tower form with a footprint of just 22.3 cm height,

14.5 cm width, and 28.8 cm depth, so making it easy to place in any IT space.

It weighs only 4.4 kg, so allowing for hassle-free installation.

It is designed for front-facing access and can be used in various mounting configurations thanks to its flexible mounting preference.

Schneider SRVSPM1KIL Easy UPS 1 Ph Built for Harsh Environments and Long-Term Durability

Engineered for robust performance, this Schneider Easy UPS operates in temperatures from 0 to 40°C,

so withstanding up to 95% relative humidity and an altitude of 3000 meters.

It complies with key international standards including CE, UKCA, EN/IEC 62040-1,

and EN/IEC 62040-2, so ensuring quality, safety, and global compatibility.

Silent Operation and Minimal Heat Emissions

Thanks to its low acoustic level of 50 dBA and heat dissipation of just 372 BTU/h,

this uninterruptible power supply UPS offers quiet operation, ideal for environments where noise is a concern, such as offices or small IT rooms.

Warranty and Packaging Information

Schneider offers a 2-year repair or replace warranty, so giving you peace of mind with your investment.

The uninterruptible power supply UPS is packaged safely in a compact unit box (33 x 23.5 x 36 cm, 5.9 kg)

also is also available in bulk packaging for larger deployments.
