Schneider E3SUPS30KHB2 Easy On-Line UPS, 3 Phase, 30kVA\30kW, 400V, Tower

Schneider E3SUPS30KHB2 Easy On-Line UPS

3 Phase, 3S, 30kVA\30kW, 400V 3:3 UPS, 4 internal 7Ah modular battery strings, Tower

High-Performance 30kVA 3-Phase UPS for Business Continuity

Schneider E3SUPS30KHB2 Easy On-Line UPS 3S is a 30kVA\30kW 400V 3-phase uninterruptible power supply designed to provide stable

and reliable power to small and medium data centers, electrical rooms, and business-critical applications.

It features a robust electrical design that ensures seamless operation in demanding environments.

With advanced features, a competitive specification set, and an easy installation process,

this UPS is a great solution for businesses looking for cost-effective and efficient power backup.

It includes a dust filter and conformance-coated boards, making it ideal for harsh environments.

Powerful and Efficient Energy Output with Schneider E3SUPS30KHB2 Easy On-Line UPS:

This UPS delivers a rated power of 30kVA (30kW) with a high efficiency rating, ensuring minimal power wastage.

It operates at 400V three-phase output, but also supports 380V and 415V outputs to match different electrical systems.

The double-conversion online technology guarantees consistent and clean power, making it suitable for sensitive electronic equipment.

The UPS maintains output voltage stability within ±1.5% and keeps harmonic distortion below 3%,

which ensures that connected devices operate safely without power fluctuations or surges.

Reliable Battery Backup with Modular VRLA Batteries:

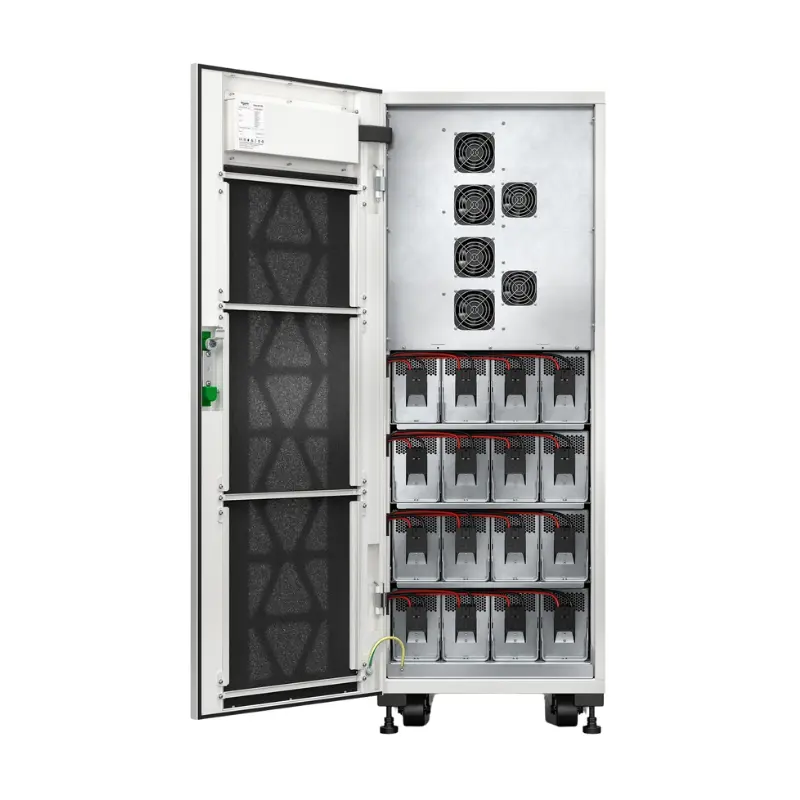

The Schneider Easy On-line UPS 3S comes with four internal 7Ah modular VRLA battery strings, providing dependable energy storage during power outages.

These high-quality batteries offer a 240V backup power supply, ensuring that connected systems stay online until a secondary power source is restored.

The Uninterruptible power supply design includes four battery slots, all of which are pre-filled, meaning you don’t need to add additional battery modules.

This simplifies installation and maintenance while ensuring long-lasting performance.

Optimized for High-Efficiency and Low Energy Loss in Schneider E3SUPS30KHB2 Easy On-Line UPS:

Designed with a high input power factor of 0.99, the UPS minimizes energy wastage and maximizes efficiency.

The input harmonic distortion is below 3%, which prevents excessive electrical noise and disturbances.

With a maximum short-circuit current of 10kA, the system can handle high-power fluctuations without risk of damage.

The low heat dissipation (1410W) and quiet operation (63 dBA) make this UPS an excellent choice for office and industrial settings.

It provides smooth, uninterrupted power, ensuring business continuity without unnecessary energy losses.

Built for Easy Installation and Maintenance:

One of the biggest advantages of the Schneider E3SUPS30KHB2 Easy UPS 3S is its user-friendly design.

The compact dimensions (140cm x 50cm x 96.9cm) and pre-installed modular batteries make installation quick and simple.

The unit includes a clear installation guide, making it easy for technicians to set up and integrate into existing systems.

It is also USB-compatible, allowing for straightforward system monitoring and control.

Strong and Durable Construction for Any Environment:

This UPS is designed to withstand challenging environmental conditions.

The dust filter and conformance-coated circuit boards protect against dust, humidity, and temperature variations.

The IP20 rating ensures safety in indoor settings.

It operates efficiently in temperatures between 0°C and 40°C, with a storage temperature range of -15°C to 40°C.

The UPS can function at altitudes up to 3,333 feet, making it suitable for diverse locations.

Compliance with International Safety and Quality Standards:

The Schneider Easy On-line UPS 3S meets several international safety and performance certifications, including CE, EAC, and RCM compliance.

These certifications guarantee that the product adheres to strict quality and operational safety guidelines, ensuring long-term reliability and secure power protection.

Schneider E3SUPS30KHB2 Easy On-Line UPS is Ideal Power Backup for Critical Applications:

This UPS is a perfect choice for businesses that require stable and reliable power backup.

Whether it’s data centers, industrial operations, or commercial setups,

the Schneider E3SUPS30KHB2 Easy On-line UPS 3S ensures continuous power supply, protecting valuable equipment from unexpected power failures and fluctuations.

With its easy-to-maintain design, strong battery backup, and high efficiency, it provides businesses with a cost-effective power solution that enhances productivity and minimizes downtime.
