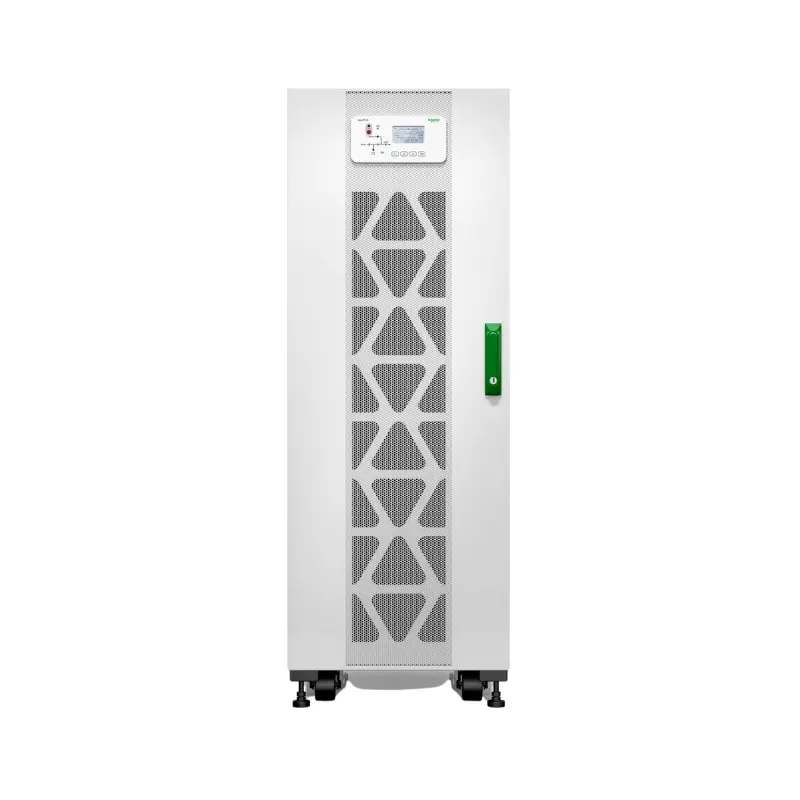

Schneider E3SUPS30K3IB1 Easy On-Line UPS, 3 Phase, 30kVA/30kW, 400V, Tower

Schneider E3SUPS30K3IB1 Easy On-Line UPS

 phase, 3S, 30 kVA/30 kW, 400V 3:1 UPS, 2 internal 7Ah modular battery strings, expandable to 4, Tower

High-Performance Power Protection for Businesses:

  Schneider E3SUPS30K3IB1 Easy UPS 3S is a 30 kVA uninterruptible power supply (UPS) 3 phase designed for small to medium-sized data centers and electrical rooms.
It provides continuous and stable power to safeguard critical equipment from electrical disturbances.
With a double conversion online design, it ensures consistent voltage and frequency regulation, reducing risks caused by power fluctuations.

Efficient and Expandable Battery System:

  Schneider E3SUPS30K3IB1 UPS includes two internal 7Ah modular battery strings, expandable up to four for extended runtime.
The VRLA (Valve Regulated Lead Acid) battery system operates at 240V and can discharge at a maximum current of 81A, ensuring reliability during outages.
It also features a battery-free slot design, allowing easy expansion as p;ower backup needs grow.

Powerful Output Performance:

With a rated power of 30 kW (30 kVA), this Schneider Uninterruptible Power Supply provides stable output at 230V with options for 220V and 240V. The output frequency syncs to mains power (50/60 Hz), ensuring seamless integration with various electrical systems.
It maintains a low harmonic distortion (<5.5% at 100% non-linear load) and supports overloads of up to 150% for 60 seconds, offering exceptional power protection.

Reliable Input Power Management with Schneider E3SUPS30K3IB1 Easy On-Line UPS:

This UPS operates at a 400V 3 phase input, with additional support for 380V and 415V.
It features an input power factor of 0.99 and maintains an input voltage range of 304V to 477V, allowing it to handle voltage fluctuations effectively.
Additionally, it keeps input harmonic distortion below 5% at full load, reducing electrical noise and enhancing efficiency.

Robust Build and Space-Saving Design:

The Schneider Easy UPS 3S is built with high-quality materials and designed for easy installation and maintenance.
With dimensions of 140 cm (H) x 50 cm (W) x 99.6 cm (D) and a net weight of 212 kg, it fits into compact spaces while delivering industrial-grade power protection.
The white RAL 9003 color adds a clean and professional appearance.

Built to Withstand Harsh Environments:

Designed for demanding conditions, this UPS features a dust filter and conformance-coated boards to enhance durability.
It operates in temperatures from 0°C to 40°C, with a relative humidity tolerance of up to 95% (non-condensing).
Additionally, it is built to function at altitudes up to 3281 feet and can be stored at temperatures ranging from -15°C to 40°C without performance degradation.

Energy Efficiency and Heat Management of Schneider E3SUPS30K3IB1 Easy On-Line UPS:

The Schneider Easy UPS 3S is designed for high efficiency, ensuring lower energy consumption.
It has an advanced cooling system that keeps the unit running optimally, with a heat dissipation rate of 1810W and an acoustic noise level of 63 dBA.
This makes it an energy-efficient and quiet choice for businesses.

Comprehensive Safety and Certifications:

This Schneider UPS 3 Phase complies with CE, EAC, and RCM certifications, meeting global safety standards.
It includes built-in protections like switch and fuse input protection to prevent electrical hazards. The IP20 protection rating ensures resistance against dust and solid objects, adding another layer of security.

User-Friendly Installation and Operation:

Schneider designed the Easy UPS 3S with simplicity in mind.
The package includes an installation guide, making setup easy even for non-experts. It also features a USB-compatible interface, allowing users to monitor power conditions effortlessly.
The intuitive design ensures that operation and maintenance remain hassle-free.

Reliable Warranty and Support with Schneider E3SUPS30K3IB1 Easy On-Line UPS:

The Schneider E3SUPS30K3IB1 Easy UPS 3S comes with a 2-years on-site repair or replacement warranty with factory-authorized start-up.
This ensures that businesses receive professional support in case of any issues, minimizing downtime and keeping operations running smoothly.

This UPS is an ideal choice for businesses looking for a dependable, high-performance, and expandable power protection solution.
