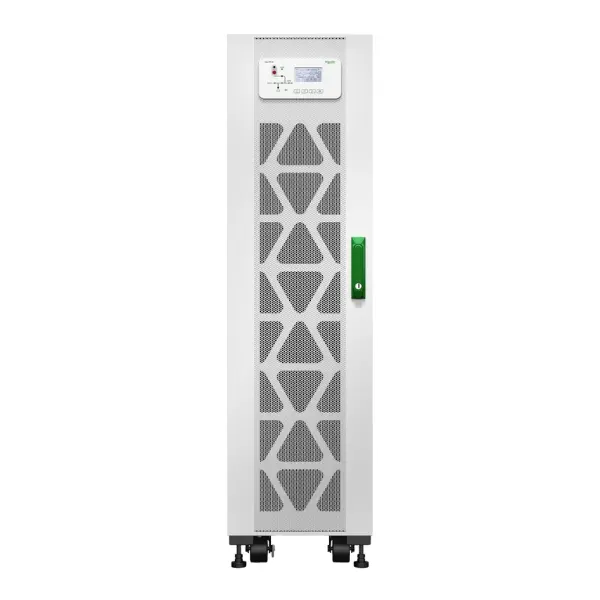

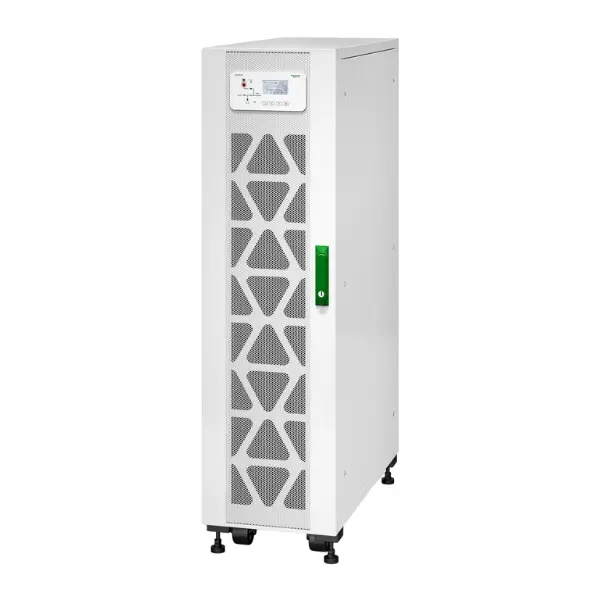

Schneider E3SUPS20K3IB1 Easy On-Line UPS, 3 Phase, 20kVA/20kW, 400V, Tower

Schneider E3SUPS20K3IB1 Easy On-Line UPS

3 phase, 3S, 20kVA/20kW, 400V 3:1 UPS , 2 internal 7Ah modular battery strings, expandable to 3, Tower

High-Performance 20 kVA UPS for Business Continuity:

Schneider E3SUPS20K3IB1 Easy On-Line UPS 3 Phase is a high-efficiency uninterruptible power supply designed for small and medium data centers, IT facilities, and electrical rooms.

Besides a 20 kVA / 20 kW power rating, this double-conversion online UPS provides stable and continuous power protection, ensuring seamless operation during power disruptions.

Its advanced electrical design, robust specifications, and high efficiency make it an excellent choice for critical power backup solutions.

Versatile Input and Output Voltage Compatibility with Schneider E3SUPS20K3IB1 Easy On-line UPS:

The Schneider E3SUPS20K3IB1 UPS supports a main input voltage of 400V (3-phase) while also accommodating 380V and 415V.

With an output voltage range of 220V to 240V, this UPS ensures flexibility in various power environments.

It maintains an input power factor of 0.99, minimizing energy losses and enhancing overall performance.

Less than 5% input harmonic distortion ensures a clean and efficient power supply,

that is protecting sensitive IT and industrial equipment from electrical disturbances.

Expandable Battery System for Extended Runtime:

One of the standout features of the Schneider E3SUPS20K3IB1 Easy Online UPS 3S is its customizable battery configuration.

This UPS also comes with 2 internal 7Ah modular battery strings and can be expanded to 3 battery strings for longer backup runtime.

Operating with a VRLA battery type and a battery voltage of 240V, it supports a maximum discharge current of 54A.

Businesses can scale their power backup capacity according to specific needs, ensuring uninterrupted operations during extended outages.

Durable and Environmentally Robust Design of Schneider E3SUPS20K3IB1 Easy On-line UPS:

Built for challenging environments, the Schneider E3SUPS20K3IB1 UPS includes a dust filter and conformance-coated boards, enhancing durability in industrial and IT settings.

With an IP20 protection rating, it safeguards against dust and small particles.

This UPS is designed to function effectively at an operating temperature range of 0°C to 40°C,

and a relative humidity tolerance of up to 95% (non-condensing), so ensuring reliability in various environmental conditions.

High Efficiency and Reliable Power Protection:

The Schneider E3SUPS20K3IB1 Easy Online UPS 3S ensures optimal efficiency with its double-conversion online technology, providing continuous and stable power supply.

It features an output voltage tolerance of ±1.5%, ensuring precise voltage regulation.

The output harmonic distortion remains below 5.5% at 100% non-linear load, making it ideal for mission-critical applications.

Additionally, it supports overload operation for 10 minutes at 125% load and 60 seconds at 150% load,

that is offering superior power management during peak loads.

Compact, Space-Saving, and Easy to Install of Schneider E3SUPS20K3IB1 Easy On-line UPS:

The Schneider Easy Online UPS 3S is designed for easy installation, maintenance, and operation.

With dimensions of 140 cm in height, 38 cm in width, and 90.7 cm in depth, it is a space-saving uninterruptible power supply that fits seamlessly into data centers and electrical rooms.

Weighing 177 kg, this high-density power protection system provides robust performance without requiring excessive space.

USB compatibility ensures easy monitoring and management, enhancing user convenience.

Certified for Compliance and Safety:

The Schneider E3SUPS20K3IB1 Easy Online UPS 3S meets international safety and compliance standards, including CE, EAC, and RCM certifications.

It includes built-in input protection with a circuit breaker and fuse, preventing electrical faults and ensuring a safe operational environment.

With a maximum short-circuit current of 10 kA, this UPS is capable of handling high electrical loads without compromising system stability.

A Powerful and Efficient UPS for Business Needs:

The Schneider Uninterruptible Power Supply is a high-performance, efficient,

and reliable UPS that ensures uninterrupted power protection for businesses, data centers, and industrial applications.

Its expandable battery configuration, high efficiency, and durable design make it a top choice for mission-critical power backup solutions.

Whether you need continuous power protection for IT systems, telecommunications, or industrial equipment,

this uninterruptible power supply guarantees optimal performance and long-term reliability.
