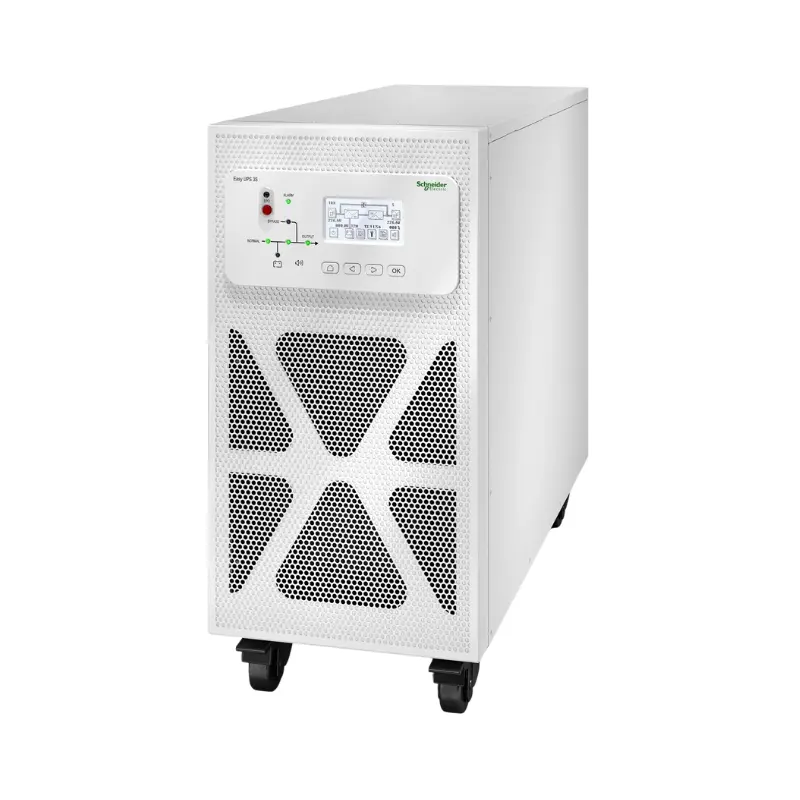

Schneider E3SUPS10K3I Easy On-Line UPS, 3 Phase, 10kVA\10kW, 400V, Tower

Schneider E3SUPS10K3I Easy On-Line UPS

3 Phase, 3S, 10 kVA\10 kW, 400 V, 3:1, UPS for external batteries, Tower

High-Efficiency 10kVA/10kW UPS for Uninterrupted Business Operations:

Schneider E3SUPS10K3I Easy On-Line UPS is a high-performance, 3-phase uninterruptible power supply designed to provide seamless power protection for small and medium businesses.

With a rated power of 10 kVA/10 kW, this UPS ensures continuous operation in data centers, electrical rooms, and other critical environments.

Its advanced features, robust electrical design, and competitive specifications make it an ideal choice for businesses seeking reliable and efficient power backup.

Advanced Double-Conversion Online Technology for Maximum Protection:

This E3SUPS10K3I UPS utilizes double-conversion online technology,

that is ensuring consistent and stable power output by continuously converting AC to DC and back to AC.

With a crest factor of 3:1 and harmonic distortion of less than 3%,

whereas it delivers clean and reliable power, protecting sensitive equipment from power fluctuations, surges, and outages.

Its input power factor of 0.99 and input harmonic distortion of less than 4% guarantee energy efficiency and reduced operational costs.

Flexible Input and Output Voltage for Versatile Applications of Schneider E3SUPS10K3I:

The E3SUPS10K3I supports a main input voltage of 400V (3-phase) and is compatible with 380V and 415V inputs, making it adaptable to different power environments.

It provides a main output voltage of 230V and supports 220V and 240V outputs, that is ensuring compatibility with various electrical systems.

With an output frequency of 50Hz or 60Hz, it seamlessly synchronizes with the mains power supply, offering stable performance across different regions.

Customizable Battery Solution for Extended Runtime:

This E3SUPS10K3I is supplied without batteries, that is allowing users to customize their battery solution based on specific backup needs.

Its internal modular battery design ensures easy scalability and maintenance.

The UPS also supports a maximum short-circuit current of 10 kA and provides overload protection,

for enhanced reliability, handling 125% load for 10 minutes and 150% load for 60 seconds.

Durable and Compact Design for Harsh Environments with Schneider E3SUPS10K3I:

The Schneider UPS features a sturdy white (RAL 9003) chassis with a compact design,

that is measuring 53 cm in height, 25 cm in width, and 70 cm in depth.

Weighing only 36 kg, it is easy to install and manage.

Besides an IP20 protection rating, conformance-coated boards, and a dust filter,

this UPS is built to withstand harsh environmental conditions, that is making it ideal for industrial and commercial use.

User-Friendly Installation and Operation:

Designed for simplicity, the Easy On-Line UPS is exceptionally easy to install, operate, and maintain.

It includes a comprehensive installation guide to assist with setup.

The USB compatibility feature allows for convenient monitoring and management,

that is ensuring optimal performance with minimal user intervention.

Energy-Efficient and Environmentally Friendly Performance:

The Easy UPS operates within an ambient temperature range of 0–40°C and supports a storage temperature range of -15–40°C.

Besides a relative humidity tolerance of 0–95% (non-condensing) and an acoustic level of only 60 dBA, it ensures quiet and efficient performance.

Its heat dissipation of 516W minimizes energy waste, that is contributing to lower operating costs and a reduced carbon footprint.

Certified Quality and Reliable Warranty Support of Schneider E3SUPS10K3I:

Backed by CE, EAC, and RCM certifications, the Schneider uninterruptible power supply meets international safety and performance standards.

It also comes with a 2-year on-site repair or replacement warranty,

that is ensuring peace of mind and reliable support for business continuity.

Besides a lead time of just six weeks, businesses can quickly integrate this UPS into their power infrastructure for superior protection and efficiency.
