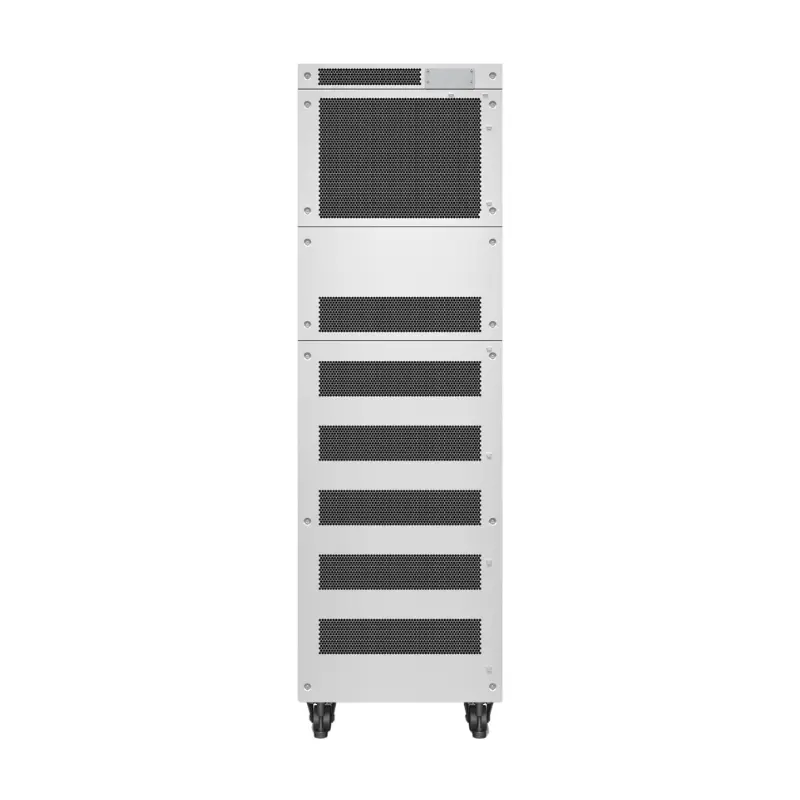

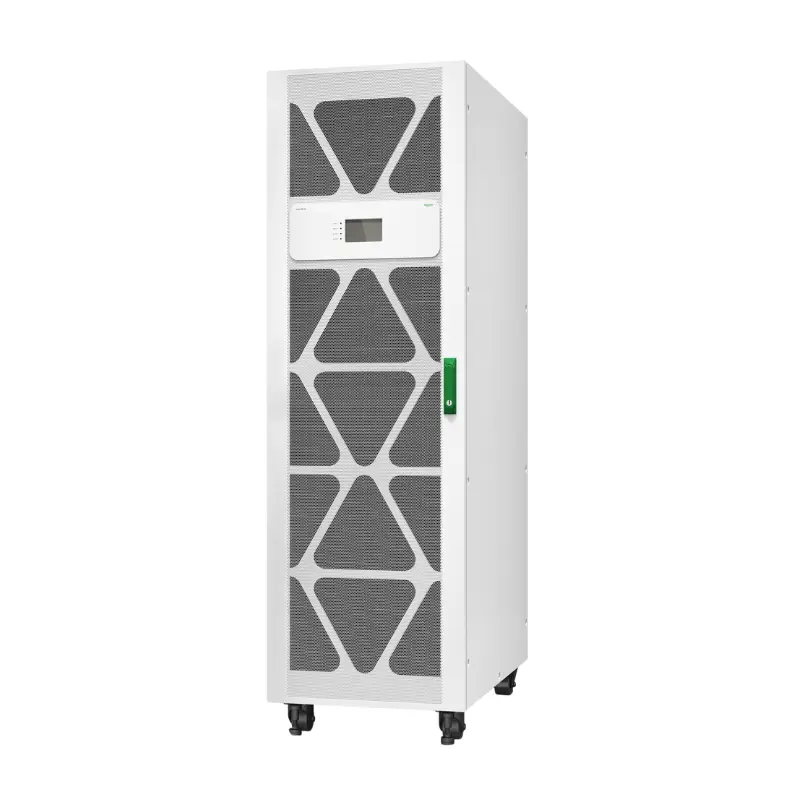

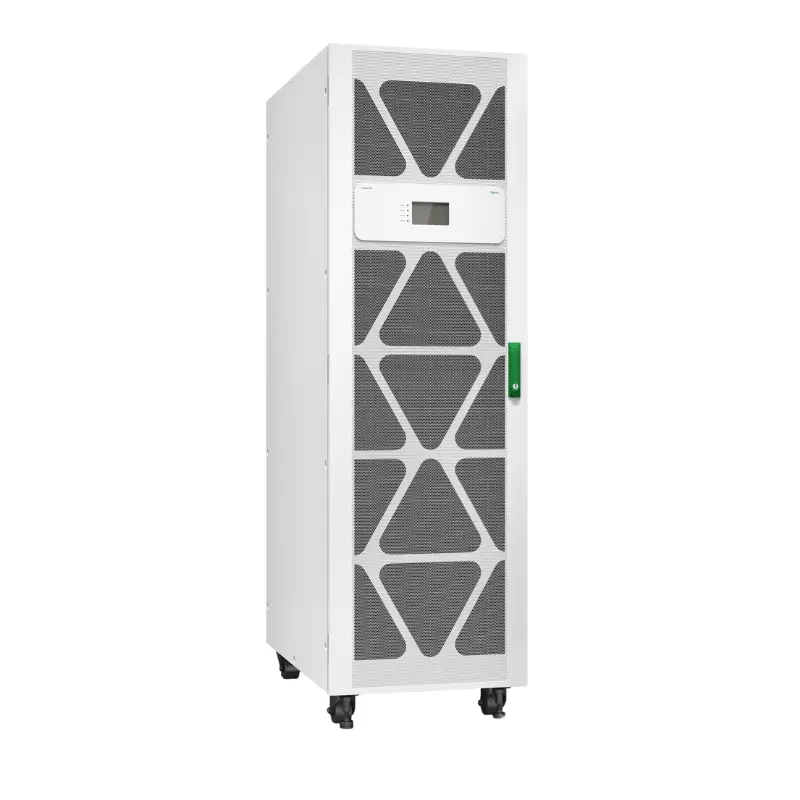

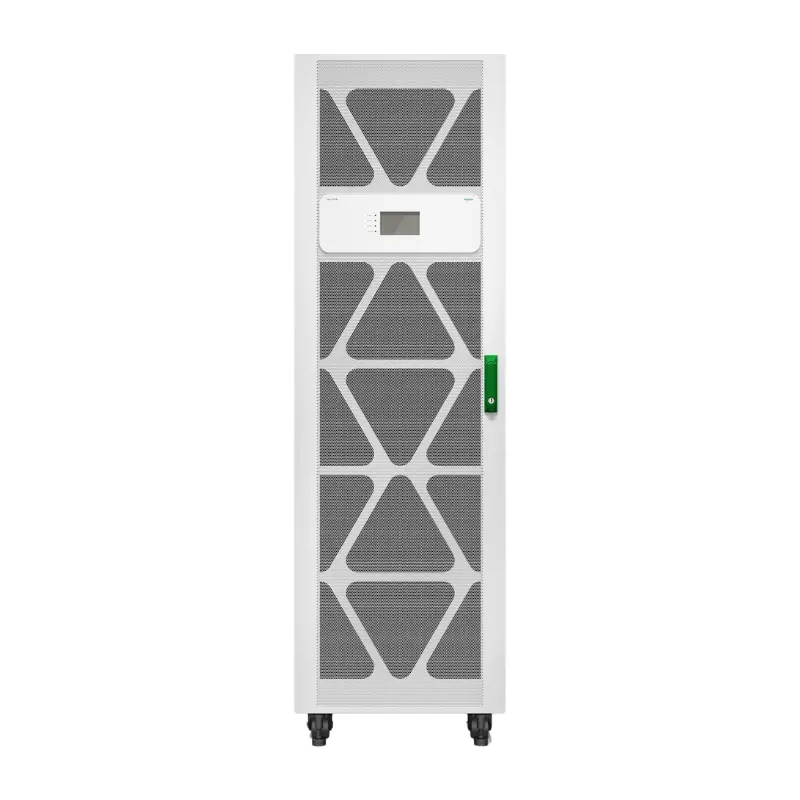

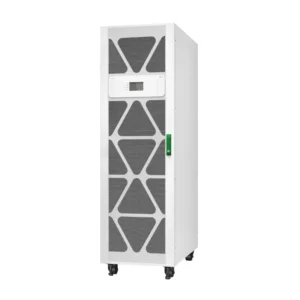

Schneider E3MUPS80KHB1S Easy On-Line UPS, 3 Phase, 80kVA/80kW, 400 V, Tower

Schneider E3MUPS80KHB1S Easy On-Line UPS

3 Phase, 3M, 80kVA/80kW, 400V, 3:3 UPS, 4 internal 9Ah modular battery strings expandable to 6, Tower

Schneider E3MUPS80KHB1S High-Performance Power Protection for Business Continuity:

Schneider E3MUPS80KHB1S Easy On-Line UPS 3 Phase is designed to ensure seamless business operations by providing reliable power protection.

With its double conversion online technology, this uninterruptible power supply (UPS) delivers a consistent sine wave output,

that is making it ideal for small to medium-sized data centers and other mission-critical applications.

Furthermore, the high efficiency and robust electrical specifications ensure smooth operation under demanding conditions.

Compact and Easy-to-Install UPS Solution:

One of the standout features of the Schneider E3MUPS80KHB1S is its compact design, which optimizes space while maintaining high performance.

Measuring 197 cm in height, 60 cm in width, and 100 cm in depth, this UPS can be conveniently installed in various business environments.

Additionally, the hard-wired 5-wire (3P + N + E) input connection allows for an easy setup, ensuring a hassle-free integration process.

Powerful Battery Backup with Expandable Runtime:

To keep operations running smoothly during power outages, the Easy On-line UPS 3M 80kVA comes with four internal 9Ah modular battery strings,

which can be expanded to six for extended runtime.

The VRLA battery technology ensures reliable energy storage and fast power restoration,

that is making it a dependable choice for businesses requiring uninterrupted operations.

Superior Electrical Performance and Efficiency:

The Schneider UPS offers an input power factor of 0.99, reducing power consumption and improving energy efficiency.

With less than 3% input harmonic distortion at full load, it minimizes electrical noise and enhances system stability.

Moreover, the output overload protection allows 10 minutes at 125% load and 60 seconds at 150% load, ensuring resilience against sudden power surges.

Wide Input and Output Voltage Compatibility:

The Schneider E3MUPS80KHB1S is compatible with various voltage levels, including 400V (main voltage), 380V, and 415V for both input and output.

Additionally, it supports network frequencies between 40Hz and 70Hz, making it adaptable to diverse power infrastructures.

These features provide flexibility and stability, making the uninterruptible power supply suitable for different electrical environments.

Advanced Monitoring and User-Friendly Interface:

Equipped with a touch-screen LCD user interface, the Schneider UPS simplifies monitoring and control.

The intuitive design allows users to track performance metrics, battery status, and system alerts efficiently.

Furthermore, the UPS supports USB connectivity, ensuring seamless integration with existing management systems.

Built-in Static Bypass for Seamless Power Transfers:

A key benefit of this uninterruptible power supply is its built-in static bypass,

which ensures uninterrupted power delivery during maintenance or fault conditions.

This feature prevents system downtime and protects connected equipment from unexpected failures,

that is making it an excellent choice for businesses that require continuous uptime.

Reliable Safety and Environmental Standards:

The Schneider Uninterruptible Power Supply complies with leading certifications, including CE, EAC, and RCM, ensuring adherence to strict safety and quality standards.

Additionally, it features IP20-rated protection, safeguarding internal components from dust and accidental contact.

The Schneider UPS also operates efficiently within a temperature range of 0 to 40°C and relative humidity of up to 95%,

that is making it suitable for various environmental conditions.

Optimized Heat Dissipation and Low Noise Levels:

With a heat dissipation of 14,850 Btu/h and an acoustic level of 65 dBA, the Schneider Easy On-Line UPS maintains a balance between performance and noise reduction.

This makes it a practical choice for offices, data centers, and industrial settings where temperature management and noise control are essential.

Comprehensive Startup and Installation Services:

To facilitate a smooth setup, the Schneider E3MUPS80KHB1S Easy UPS includes a 5×8 startup service, ensuring proper configuration and optimal performance.

The package also comes with a dust filter and an installation guide, helping users maintain the uninterruptible power supply effectively over time.

A Smart Investment for Reliable Power Protection:

For businesses looking for a high-performance, energy-efficient, and easy-to-install UPS solution, the Schneider Electric Easy UPS 3M 80kVA is a top choice.

With advanced monitoring, robust battery backup, and superior power protection,

whereas it ensures operational continuity and protects valuable equipment from power disruptions.

Whether for data centers, industrial applications, or commercial use, this UPS offers a reliable and scalable power management solution.
