APC SRV20KRILRK Easy On-Line UPS, 20kVA/20kW, 1Ph, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit, Rackmount 9U

APC SRV20KRILRK

Easy On-Line UPS, 20kVA/20kW, 1Ph, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit, Rackmount 9U

Reliable 20kVA Power Protection:

APC SRV20KRILRK Easy On-Line UPS is a top-tier, single-phase uninterruptible power supply (UPS) designed for demanding environments where maximum uptime and high power protection are essential.
With a 20kVA/20kW capacity, this model delivers robust performance and efficiency, offering 100% capacity usage with consistent reliability.
Its double conversion online technology ensures clean, continuous power delivery even in unstable conditions, making it ideal for critical IT infrastructure, data centers, and industrial applications.

Superior Performance and Extended Runtime:

This UPS supports a wide load range from 2000W to 20000W and can provide up to 2 minutes and 1 second of runtime at full load, with the flexibility to extend runtime using external battery packs.

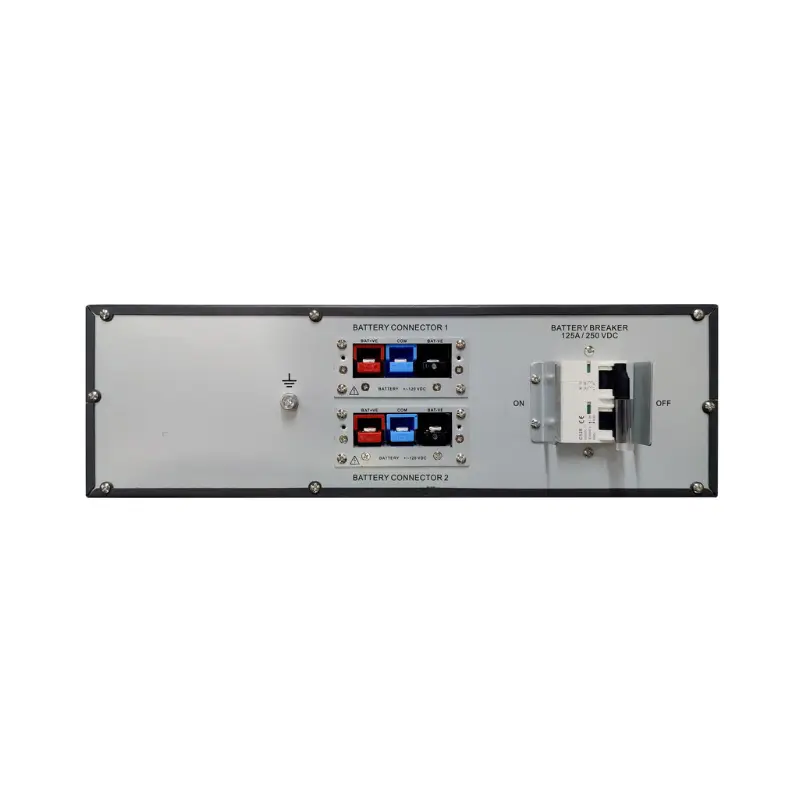

Equipped with lead-acid batteries operating at +/-120V and a recharge time of just 6 hours, the SRV20KRILRK is designed to keep systems operational during power interruptions.
The internal automatic and manual bypass ensures maintenance and service can be performed without downtime.

Advanced Input and Output Flexibility:

The APC SRV20KRILRK UPS supports various input voltages (220V, 230V, and 415V) and offers high compatibility with different environments.

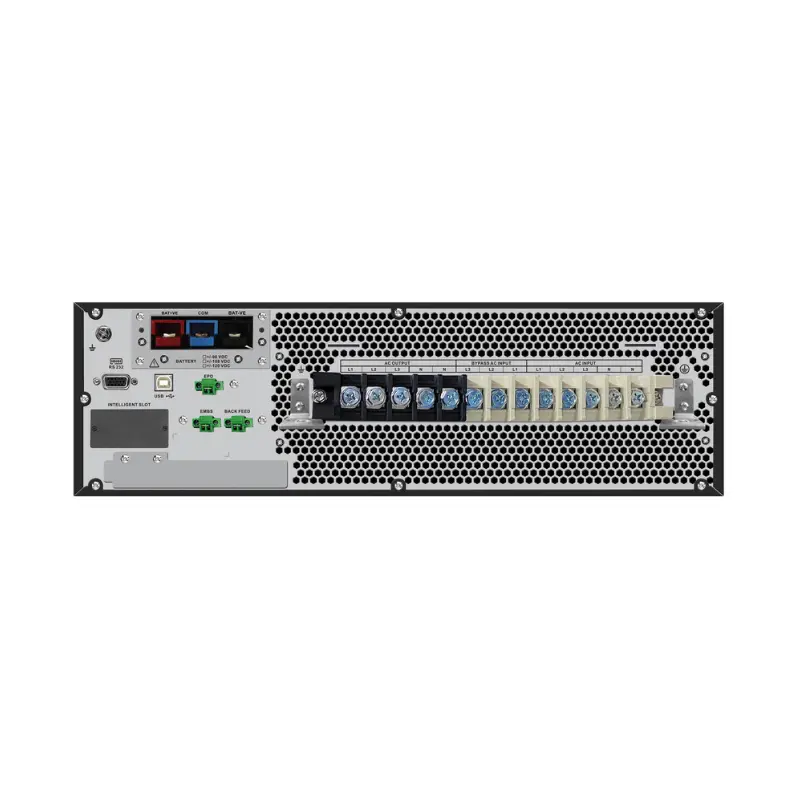

It features hard wire 3-wire (1P + N + E) and 5-wire (3P + N + E) connectors, supporting versatile installation needs.
The output voltage is configurable to 220V, 230V, or 240V, ensuring seamless integration into different power systems.
With an output frequency synchronized to mains (50/60Hz ±3Hz) and a 2% harmonic distortion, the UPS guarantees the cleanest possible power delivery.

User-Friendly Management and Communication:

Managing the UPS is effortless thanks to the multifunction LCD control panel, providing real-time operational data and system status.

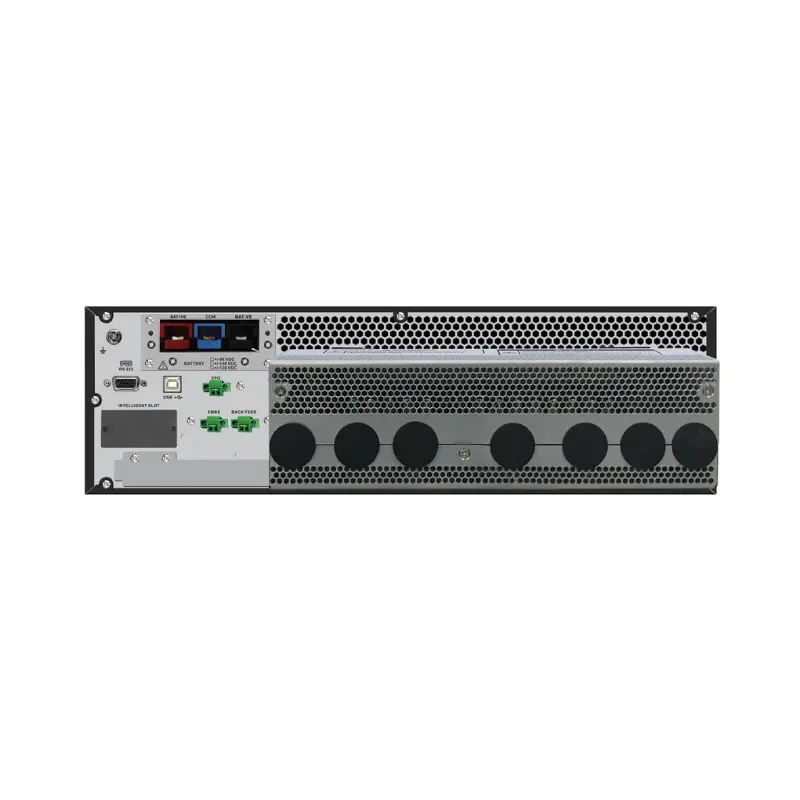

It supports USB and RS-232 connections and includes an Intelligent Card Slot for optional network management accessories.
Alarms alert users to battery operation, low battery, or overload conditions, ensuring proactive response to issues. An Emergency Power Off (EPO) function is also included for enhanced safety.

Durable Build and Environmental Adaptability:

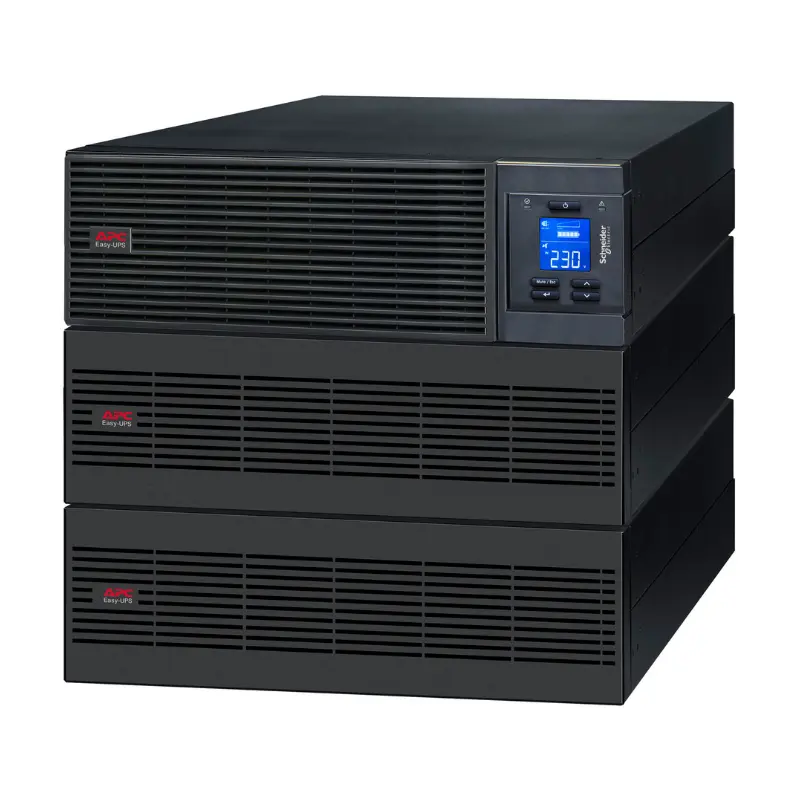

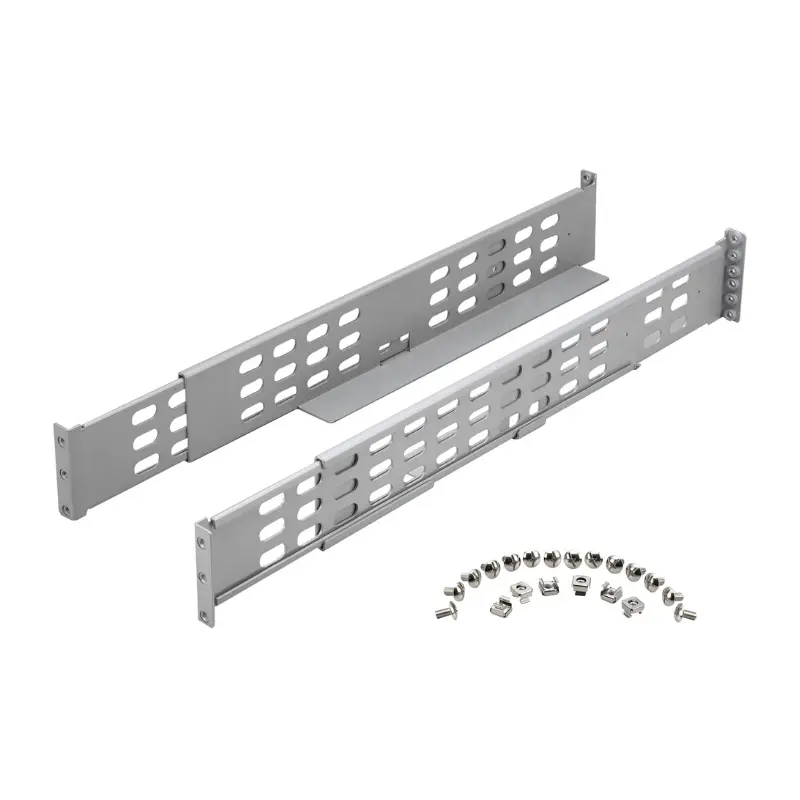

Designed in a compact 9U rackmount form factor, the SRV20KRILRK is easy to install with the provided rail kit, jumpers, and wall-mounting feet.
It operates efficiently within a 0–40°C temperature range and up to 3000 meters altitude, with IP20 protection and 95% maximum relative humidity tolerance. With an impressive 95% efficiency at full load and a low 65dBA acoustic level, it offers reliable performance while minimizing energy costs and noise.
